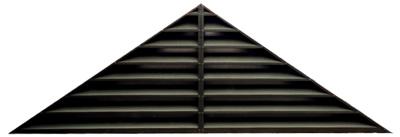

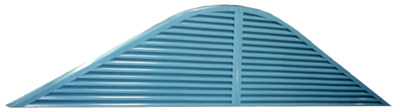

Wall Louvres Shapes and Sizes
Wall Louvres Wall Louvres Tech Diagrams and Stats


STORMPROOF METAL FIXED LOUVRES

Available in zincalume, c/bond, aluminium and stainless steel.
Manufactured in modules to 2000mm in length x height

SPWMFL 75mm in depth
SPWMFL 100mm in depth
SPWMFL 150mm in depth

For low to medium level air inlet on all elevations.
Specify MBR SPWMFL (depth) louvres in (material type) finish to sizes given.
options internal fly/bird screen.



Click on the diagram above to view a larger version


WEATHERPROOF METAL FIXED LOUVRES

Available in zincalume, c/bond, aluminium and stainless steel.
Manufactured in modules to 1800mm in length x height

WMFL 75mm in depth
WMFL 100mm in depth
WMFL 150mm in depth

Suitable for low level air inlet on north and east elevations, however they are not recommended for cyclonic regions.
Specify MBR WMFL (depth) louvres in (material type) finish to sizes given.
options internal fly/bird screen.

Click on the diagram above to view a larger version
